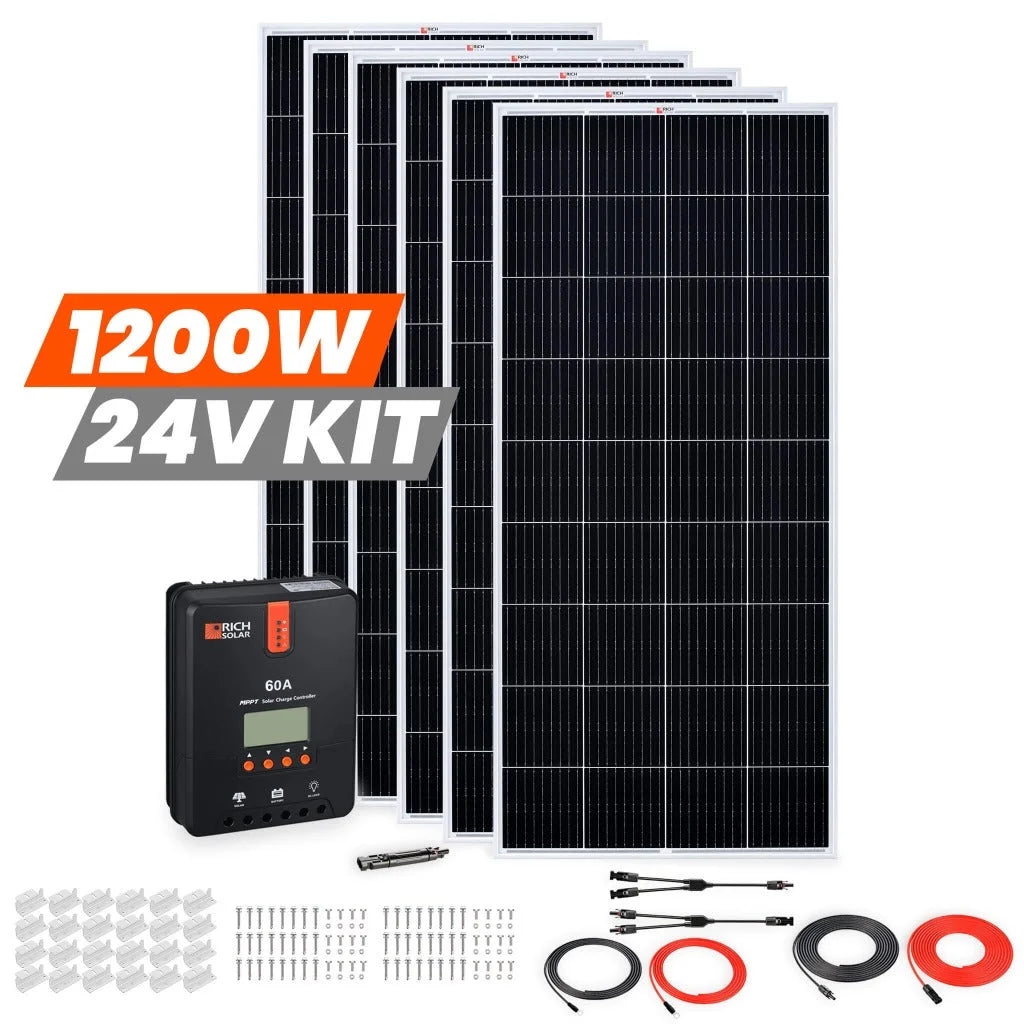

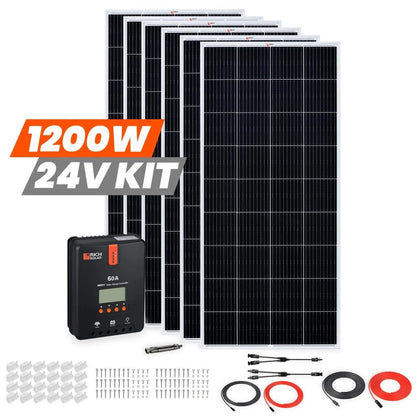

1200 Watt Solar Kit

This 1200 Watt Solar Kit contains 6 high efficiency 200W Monocrystalline panels with 9 busbars and our 60A MPPT controller. This DIY RV solar kit can be paired with a 300AH 24V battery bank and can power most RVs. For a quieter, more peaceful outdoor experience, go solar now and start powering your RV, boat, or trailer!

Specifications

• Maximum Power (Pmax): 200W

• Maximum Power Voltage (Vmp): 20.4V

• Maximum Power Current (Imp): 9.80A

• Open Circuit Voltage (Voc): 24.3V

• Short Circuit Current (Isc): 10.2A

• Weight: 26.5 lbs

• Dimensions: 58.7 x 26.8 x 1.4 in

• Solar Panel Type: Monocrystalline

• Number of Solar Panels: 6

• Electrical Current: DC

• Recommended Use: RV, Outdoor Activity

Features

• High Efficiency Solar Panel: With the highest grade monocrystalline solar cells for optimal output, our 200 watt panel is treated with anti-reflective coating to maximize light absorption.

• Simple Installation: RV solar installation is a breeze with our pre-assembled wiring harness that doesn't require crimping tools. Since all of our products are compatible with each other, making expansions, upgrades, or additions simple and easy… just plug in and go! Installing solar panels on RVs, trailers, and vans has never been easier.

• Reliable and Convenient: The digital MPPT charge controller lets you gauge your power with a glance, providing real-time updates of volts, amps, and amp hours. Provides peace of mind by protecting your system from overcharging.

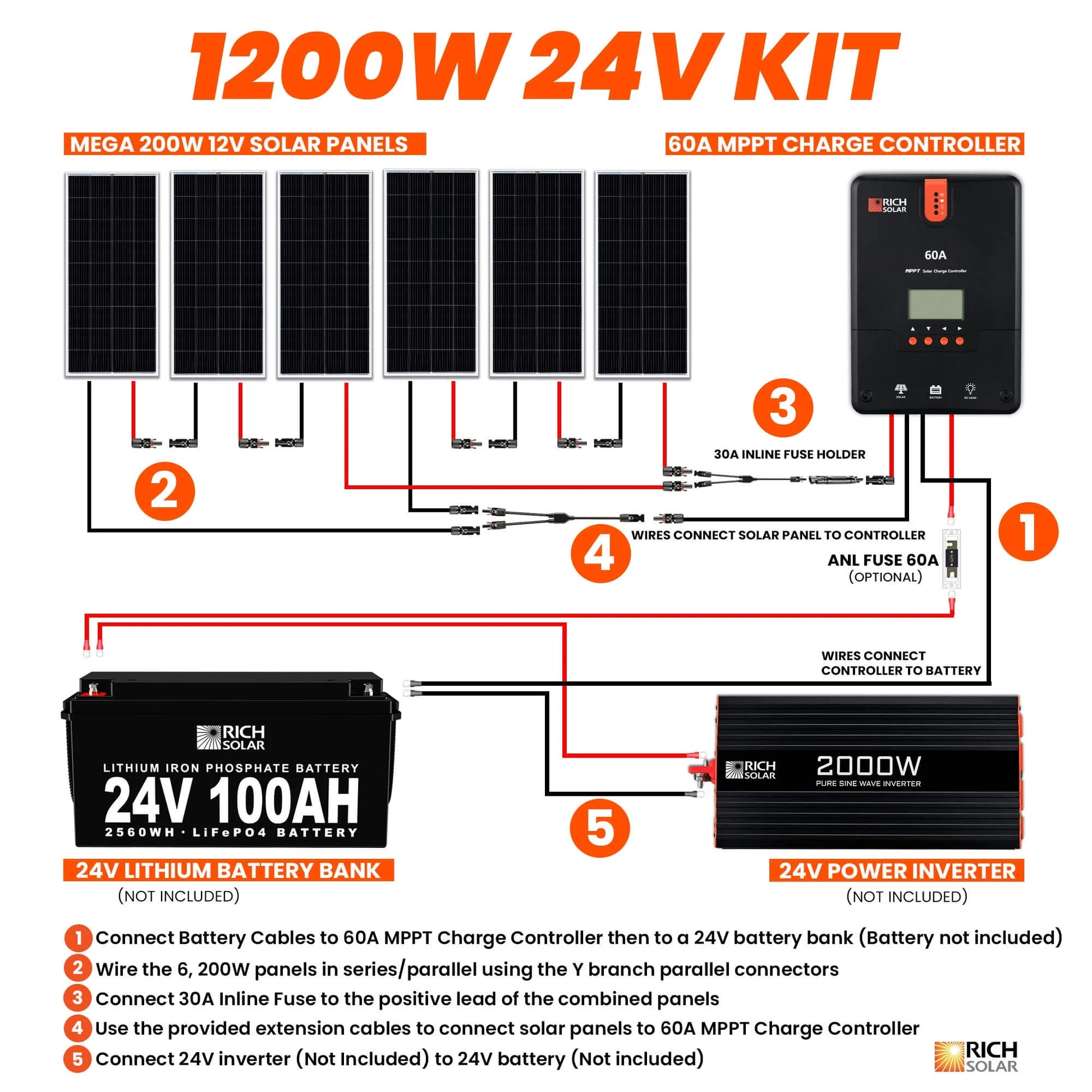

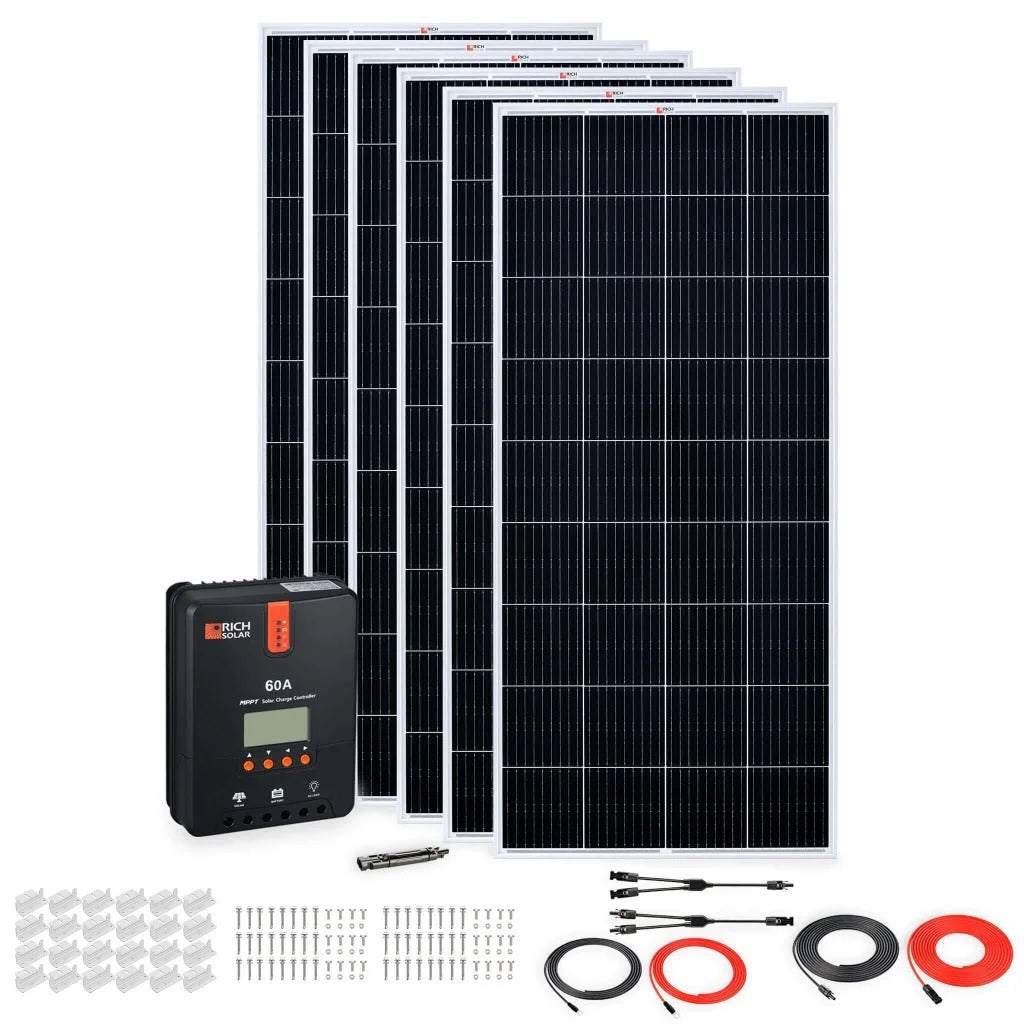

Package Includes

• 6 x 200 Watt Monocrystalline Solar Panel

• 1 x 60A MPPT Solar Charge Controller

• 1 x 20' #10 Gauge Solar Cable (Red), connects solar panel to controller

• 1 x 20' #10 Gauge Solar Cable (Black), connects solar panel to controller

• 1 x 10' #4 Gauge Battery Cable (Red), connects the controller to battery

• 1 x 10' #4 Gauge Battery Cable (Black), connects controller to battery

• 6 x Mounting Z Brackets (one set of 4)

• 1 x 30A Inline Fuse Holder with Fuse

• 1 x Y Branch Parallel Adapters

Warranty

• Solar Panels: 25 years output warranty
